TODAY’S STUDY: A YEAR OF SHINING SUN
The Titanic was proven safe – until it was proven unsafe.
The nuclear industry dupes on cable news keep saying nuclear energy has over decades been proven largely safe. This is the most flagrant case ever of “who are you going to believe, me or your own eyes?”
These people are doing chatter for news programs showing the slow, steady meltdown of four (or more!) nuclear power plants and reporting massive evidence of radiation leaks likely to have cancer-inducing ramifications for decades to come. Yet they have the gall to insist this technology has been proven safe all over the world. Yes, it absolutely has been safe – except in the occasional instances where it has NOT been safe, where the price has been human life and ecological devastation in the short-term and human health in the long-term.
Safe!?!? Ask the unbelievably selfless heroes at Fukushima now working to stop the slowly approaching horror from occurring - at the risk of deadly radiation exposure - how safe they think nuclear energy is.
New rule: Only those who have been working at the Fukushima plants can go on television and talk about how safe nuclear plants are.
The other amazing thing the nuclear propagandists claim is that New Energy is inadequate to meet modern electricity needs. Yes, it is. So is nuclear energy. In the 40 years that nuclear energy has been a U.S. power option, enough capacity has been built to meet 20% of the nation’s needs. A 2008 U.S. Department of Energy report said wind energy alone could build enough capacity to provide 20% of U.S. power by 2030.
As the report highlighted below from Greentech Media Research makes clear, solar is ready provide another big chunk of U.S. power generation in the same period, if the nation will make a commitment to it.
If the nation had ignored nuclear propagandists in the 1970s and begun building New Energy with a passion, there would be plenty of New Energy now.
The argument against building New Energy has always been that it is too expensive. As the failure in Fukushima of nuclear energy brings the world’s 3rd-biggest economy to its knees, something no previous event (including the devastating 1995 Kobe quake) was able to do, those who say the cost of nuclear beats that of New Energy might want to rethink that point.
Building more nuclear power plants has many, many hidden costs, including:
(1) managing the waste,
(2) protecting supply chains, plants and wastes from terrorist attack,
(3) tying up billions for a decade during construction,
(4) taxpayer liabilities,
(5) seeking new sources to replace the dwindling supplies of uranium,
(6) decommissioning out-of-service radioactive plants,
(7) wasted burning of nuclear fuel because of the technology’s on-off limitations,
(8) the enormous consumption of fossil fuels and production of greenhouse gas emissions through a nuclear plant’s lifecycle, and
(9) the huge amounts of water needed during operation.
Actually, the overall cost of new nuclear is much higher than the cost of building new wind and solar capacity.
And wind and solar don’t do meltdowns.
Except for the meltdown NewEnergyNews does every time it tries to understand why the nation’s recalcitrant conservative leaders listen to the nuclear industry’s drivel instead of believing their own eyes.
When will conservatives get on with CONSERVING this good earth by turning to its sun, wind, deep heat and flowing waters for ever-available, emissions-free, non-radioactive energy instead of digging in it for uranium, oil and coal like dogs looking for a bone?
U.S. Solar Market Insight™; 2010 Year in Review
March 2010 (Greentech Media Research and Solar Energy Industries Association)
2010 was a banner year for the solar energy market in the United States. In contrast to U.S. GDP growth of 2.8%, the U.S. solar market grew 67% in value in 2010. Not only did the market expand greatly, but it showed substantial diversity across market segments, geography, and technologies. Solar is growing quickly across the U.S. at the residential, commercial, and utility scale levels. It is powering and heating buildings in all !fty states, and using a variety of technologies to do so. The rapid growth and unique diversity has made the U.S.market a focus of global industry attention for the first time in many years. In 2010, the U.S. solar market grew to reach $6.0 billion, up from $3.6 billion in 2009.
Even with spectacular growth, the U.S. market is slowed by the complexities of state-by-state differences in regulations, incentives, utilities, and financing structures. Smart policies at the federal and state level, as well as a solid understanding of market conditions, are needed to continue and accelerate the growth pattern in the U.S.
click to enlarge

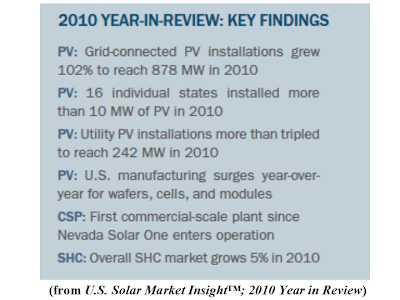

• The total size of the U.S. solar market grew 67% from $3.6 billion in 2009 to $6.0 billion in 2010.
• Solar electric installations in 2010 totaled 956 megawatts (MW) to reach a cumulative installed capacity of 2.6 gigawatts (GW).

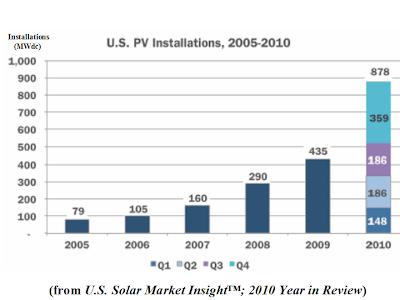

• Grid-connected PV installations grew 102% in 2010 to reach 878 MW, up from 435 MW in 2009, bringing cumulative installed PV capacity in the U.S. to 2.1 GW.
• Sixteen states each installed more than 10 MW of PV in 2010, up from four states in 2007.
• Utility PV installations more than tripled in 2010 to reach 242 MW, up from 70 MW in 2009.
• 52,600 PV systems were connected in 2010, bringing the cumulative number of grid-connected PV systems in the U.S. to 152,516.
• U.S. manufacturing of PV components increased substantially year-over-year for wafers (97% growth), cells (81% growth), and modules (62% growth).
click to enlarge
Concentrating Solar Power (CSP):
• The 75 MWac Martin Next Generation Solar Energy Center was completed in 2010; it is the largest U.S. CSP plant to come online in nearly 20 years.
• Cumulative CSP capacity from all 17 operating plants reached 507 MWac in 2010.
• Six U.S. states currently have operating CSP projects.
Solar Heating and Cooling (SHC):
• 29,500 solar pool heating systems and 35,500 solar water heating systems were installed in 2010 alone, providing heat to a total of more than 65,000 homes, businesses and pools.
• California maintained its position as the leading installer of solar water heating systems in 2010 as the national market grew 5% to 2,426 thousand square feet (tsf), compared to 2,309 tsf in 2009.
• Solar pool heating rebounded from a !ve-year low in 2009 and grew 13% in 2010 to 10,096 tsf.
click to enlarge

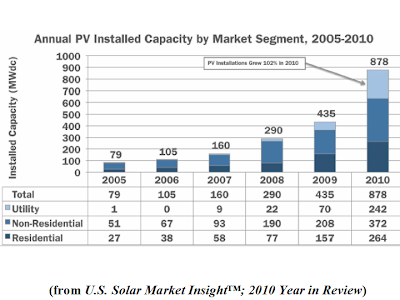

Photovoltaics (PV), which convert sunlight directly to electricity, continue to be the backbone of solar growth and markets in the U.S. 2010 was a record year for PV in the U.S., with the grid-connected market more than doubling to 878 MW installed. Prior to 2010, the U.S. PV market had grown at an average annual rate of 69% over the previous ten years, rising from just 3.9 megawatts (MW) in 2000 to 435 MW in 2009. Despite this trend, the U.S. constituted only 6.5% of global PV demand in 2009. However, thanks to an excellent photovoltaic resource, ample rooftop and land availability, and unrivaled electricity consumption, the U.S. is considered among the most valuable PV growth markets.
The U.S. saw remarkable expansion across all major market segments, growing at a rate faster than in any recent year. Despite the U.S. emerging slowly from the depths of recession, grid-connected PV installations more than doubled in 2010 to 878 MW, representing 102% growth over 2009. Sixteen states each installed more than 10 MW of PV in 2010, up from four states in 2007, showing the growing diversity of the U.S. market.

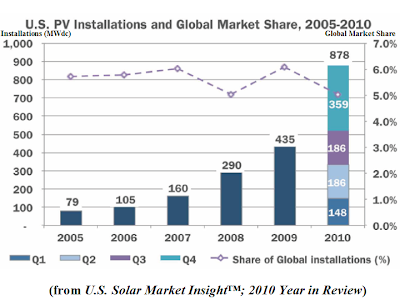

U.S. demand growth was, however, outpaced by a global market boom driven primarily by the German and Italian markets. Over 17 GW were installed globally in 2010, more than 130% growth over 2009. As a result, despite U.S. demand expansion, the U.S. market share of global installations fell from 6.5% in 2009 to 5% in 2010. As Figure 2-1 displays, the U.S. has maintained a relatively steady share of global installations since 2005, ranging between 5% and 6% each year. In 2011, the U.S. has the opportunity to expand its share substantially with another doubling of installations while the global market slows down.
click to enlarge

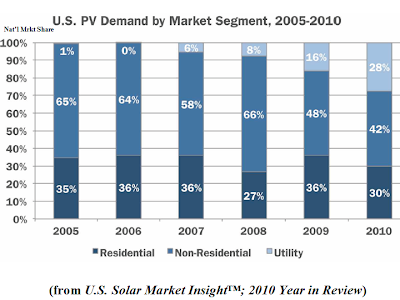

Most major national PV markets are focused on a particular market segment. In Japan, the residential market dominates. In Spain and Italy, large-scale PV systems drive the majority of demand. In Germany, residential and small commercial systems reign. Historically in the U.S., non-residential installations (which include commercial, public sector, and non-pro!t projects) drove the market, comprising more than 45% of total installations alone. In 2010, however, both the residential and utility1 markets expanded rapidly such that each of the three market segments contributed over 25% of total installations. This diversity of market segmentation is ultimately one of the greatest values of the U.S. market, as it reduces the market’s reliance on individual segments and business models.

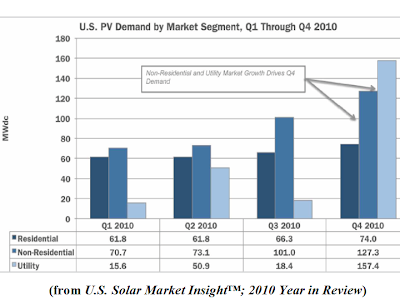

• NON-RESIDENTIAL installations were slow to recover from the !nancial crisis and remained somewhat tepid through the !rst half of 2010. But as new incentives came online and conditions for project !nance improved, so did the non-residential sector. In the fourth quarter, non-residential installations reached 127 MW, a near doubling over the !rst quarter pace. These late-year projects were the bene!ciaries of global module price declines in the !rst half of the year, whereas the earlier projects were more often utilizing higher-priced modules from late-2009 bids. For 2011, the outlook for non-residential installations is mixed. Substantial growth potential remains in emerging markets (particularly in Northeast states), but the end of Recovery Act funding for public sector projects will create a gap where there was once a strong demand pull.
click to enlarge
• RESIDENTIAL installations showed the most inter-quarter stability of any market segment in 2010, growing from 62 MW in the first quarter to 74 MW in the fourth. This stability, however, masks a large degree of volatility within many states because residential demand is largely beholden to incentive funding availability. The residential market remains highly disaggregated but consolidation is beginning to take place. In particular, residential third-party ownership is becoming a vital offering for residential installers to have in their toolbox, and the leading providers of this service have been expanding rapidly. The 2011 outlook for residential installations is strong and we anticipate substantial growth, particularly in the second half of the year.
• UTILITY installations were a breakout story in 2010. Prior to 2010, there was 113 MW of utility PV capacity operating in the U.S.; in 2010 the U.S. installed more than double that amount (242 MW in total). This includes the largest project to date, Copper Mountain Solar, which totals 55 MWdc (48 MWac). In 2011, the market will hit an even more pivotal point. There are over 700 MW of utility PV already contracted with expected 2011 completion dates. Utilities, suppliers and !nanciers are watching these projects to determine the maturity and strength of the sector. If the majority of these projects are successfully completed, the near-term growth potential of utility PV demand in the U.S. is virtually boundless. However, major roadblocks including low contract prices and !nancing bottlenecks threaten to delay this growth. Finally, some of the larger utility PV projects will rely on the DOE Loan Guarantee program in order to achieve project !nancing. If funding for this program is removed, the near-term outlook for the largest projects will be decidedly more negative.
click to enlarge

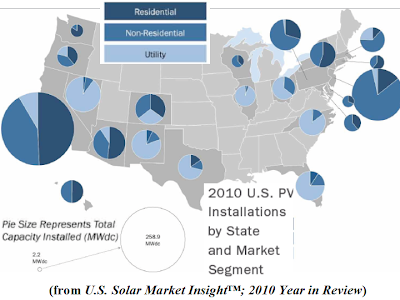

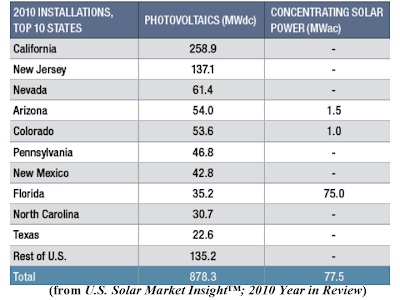

2010 was also a year of significant state market diversi!cation. In 2007, only four U.S. states installed over 10 MW of PV each: California, New Jersey, Colorado and Nevada. By 2010, 16 states accomplished that feat. Even more notably, !ve states (Arizona, California, Colorado, Nevada and New Jersey) installed over 50 MW each. Finally, New Jersey became the second state to install over 100 MW in a single year. The impact of this trend would be hard to overstate. In 2004-2005, California comprised around 80% of the U.S. PV market, but by 2010 California’s market share fell to less than 30%. As the California Solar Initiative nears its sunset, the growth of secondary state markets becomes more crucial to overall market growth. The fractured nature of the U.S. PV market presents dif!culties in achieving efficiency through economies of scale. However, the U.S. market bene!ts from a variety of incentives and market structures such that it is unlikely to experience a national boom/bust cycle like those witnessed in European feed-in tariff markets. The more that secondary markets can prove their worth, the more stable the national market will become.

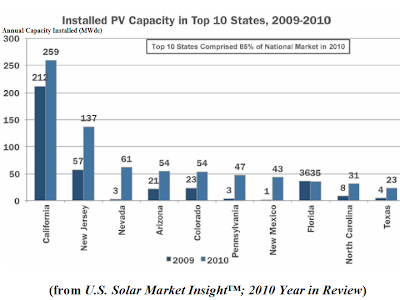

Figure 2-6 displays PV installations in the top ten states in 2010. Of these, four states are new entrants to the list: Nevada, Pennsylvania, New Mexico and Texas. On the whole, market share of the top 10 states fell from 92% in 2009 to 85% in 2010, another indicator of growing market diversity.
click to enlarge

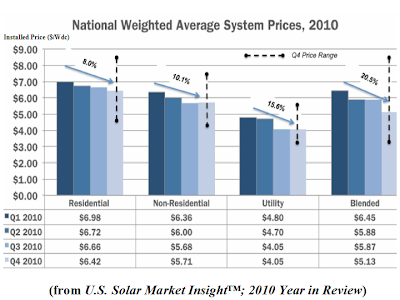

National weighted-average system prices fell by 20.5% over the course of 2010, from $6.45/W to $5.13/W. Much of this decline was due to a shift toward larger systems, particularly utility systems, in the fourth quarter.
The U.S. PV market remains highly disaggregated, resulting in a wide range of installed prices even within a given state, market segment, and quarter. Figure 2-7 displays the range of installed system prices in the fourth quarter of 2010. Residential systems were installed in certain locations (particularly Colorado and Arizona) at prices below $5.00/W, but other locations saw residential system prices over $8.00/W. Non-residential installations ranged from $4.11/W to $7.31/W. Utility installations show the most variability, largely due to the choice between low- and high-ef!ciency modules and between fixed and tracking mounting structures. Over time, it is possible that maturation of the U.S. market will bring more consistency to system prices both within and across states.
click to enlarge
2010 emerged as a banner year for domestic manufacturing of upstream PV components, as production increased substantially year-over-year for wafers (97% growth), cells (81% growth), and modules (62% growth). In total, the U.S. produced 42,561 metric tons (MT) of polysilicon, 624 MW of wafers, 1,058 MW of cells, and 1,205 MW of modules in 2010. The strong growth in domestic manufacturing can be attributed to the following factors:
• Strong growth in global demand, from 7.1 GW in 2009 to over 17 GW in 2010 (a significant percentage of U.S. component production is exported to markets such as Germany);
• Doubling of domestic demand, from 435 MW in 2009, to 878 MW, which also played a large role in stimulating domestic production;
• Increases in manufacturing capacity in all manufacturing segments, both due to new plant construction and the expansion of existing plants in 2010;
• U.S. wafer capacity increased by 82% to reach 1,018 MW;
• U.S. cell capacity increased by 32% to reach 1,657 MW;
• U.S. module capacity increased by 20% to reach 1,684 MW;
• Production ramp-up from recently constructed facilities, particularly in thin film manufacturing.
click to enlarge
The highly impressive top-line results, however, mask continuing turbulence in the field of domestic PV manufacturing. Manufacturing is a global industry, and competition from producers in low-cost regions such as China and Taiwan has introduced significant challenges for manufacturers in the U.S., Europe, and Japan over the past eighteen months. As a consequence, 2010 saw closure announcements at no fewer than three domestic PV manufacturing facilities: BP Solar’s wafer-cell plant in Maryland, Spectrawatt’s just-opened cell plant in New York, and Evergreen Solar’s integrated 160 MW wafer-cell-module plant in Massachusetts. Cost pressure on domestic plants is expected to continue to be an issue through 2011, meaning that additional plant closures will not come as a surprise. At the same time, however, 2011 should also see new plants being built, notably Wacker Chemie AG’s polysilicon plant in Tennessee, Flextronics’ crystalline silicon module plant in California, and Stion’s CIGS (Copper Indium Gallium Selenide) facility in Mississippi.
Figure 2-9 indicates the location of active domestic PV manufacturing facilities. Of the more than 2,000 companies in the U.S. solar value chain, there are at least 39 active facilities manufacturing PV components (polysilicon, wafers, cells, modules, inverters) spread across 17 states in the U.S. As can be seen, a great many of these are located in California due to its leadership position as an end-market, as well as the adjacent states of Oregon and Arizona, which offer skilled labor and strong policy support for PV manufacturers. While the Midwest has historically been dormant on the PV manufacturing front, recent plant announcements in Wisconsin, Indiana, and Illinois suggest that this is changing quickly. The geographic shift towards the Midwest seems to be taking place at the expense of states on the Eastern seaboard such as Massachusetts, Maryland, New York, and New Jersey, which have seen a total of five plant closures since mid-2009.
click to enlarge
2011 will be a pivotal year for the U.S. PV market. While installations in the U.S. are likely to double the 2010 total, the global market will experience slower growth. As a result, much of the global PV industry is turning its eye toward the U.S. with great expectations. On the whole, the demand picture for the U.S. market appears strong. Project financing remains available at attractive terms for some projects, new markets are emerging and showing strength, and incumbent markets continue their rise. The expiration of the Treasury Cash Grant program at the end of 2011, as well as the potential rescission of Federal Loan Guarantee funds, however, remain a concern. In addition, incentive availability will not ramp up at the same pace as will expected demand. It is therefore imperative that projects soon become viable with only the available federal incentives. The U.S. market will be strong in 2011, but this transition will be necessary to avoid a potentially disappointing 2012 and beyond.
CONCENTRATING SOLAR POWER (CSP)
There are four main types of CSP technologies: dish-engine, tower, Compact Linear Fresnel Reflector (CLFR), and trough. In the U.S., concentrating solar power (CSP) experienced a burst of project activity in California in the 1980s and then went quiet for two decades. In the last several years, Spain’s feed-in tariff has allowed it to take the reins as the CSP leader with over 580 MWac currently operating. But the U.S. is poised to regain leadership with a CSP project pipeline of 41 projects for a combined 9 GWac under development in the Southwest. 2010 was a big year for utility-scale solar projects on the permitting front, as the Bureau of Land Management (BLM) granted approval for eight major solar projects, including two PV plants (Lucerne, Silver State), and six CSP plants (Ivanpah, Blythe, Genesis, Amargosa, Imperial, and Calico). Two of these CSP projects, Imperial & Calico, were later sold by Tessera/Stirling to PV developers. But even as the dish-engine leader was scaling back operations, other CSP developers were moving forward on plants that will be the largest solar projects ever built. More speci!cally, in Q4 BrightSource closed financing and broke ground on its 392 MWac Ivanpah tower plant, while Abengoa broke ground on its 280 MWac Solana trough project.
click to enlarge
In 2010, three CSP projects came online in the U.S. In Q1, the 1.5 MWac Tessera/Stirling Maricopa Dish-Engine project was completed in Arizona. In Q2, the 1 MWac Abengoa Solar Cameo Hybrid plant (also known as the Colorado Integrated Solar Project) came online in Colorado. In Q4, FPL’s 75 MWac Martin Next Generation Solar Energy Center (MNGSEC) entered commercial operation. The total installed capacity in 2010 was 77.5 MWac.

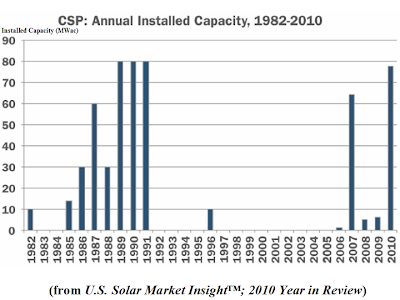

As shown in Figure 3-1, the CSP industry in the U.S. was effectively dormant from 1992 to 2006. In 2007, there was one project of scale: a 64 MWac trough plant in Nevada. The last three years have seen the construction of several small demonstration plants for various technologies: a 5 MWac CLFR plant in California in 2008, a 5 MWac tower plant in California in 2009, and a 1 MWac micro-CSP plant in Hawaii in 2009. The 75 MWac FP&L Martin Solar plant in Indiantown, Florida came online in the fourth quarter of 2010. The Martin plant is a hybrid plant, as it will connect to an existing combined-cycle natural gas power plant at the site.
2011 is likely to be a light year for CSP with few projects expected to see completion within the year. However, there are over 6.4 GWac of CSP projects with signed utility power purchase agreements (PPAs) with expected completion between 2011 and 2017. The first major growth year for CSP is expected in 2013 with at least eight projects slated to be commissioned then. In subsequent years, increasing uncertainty regarding financing, permitting, environmental converns and approvals surrounds the pipeline.
click to enlarge
SOLAR HEATING AND COOLING
The solar heating & cooling (SHC) category is composed of two distinct markets: Solar Water & Space Heating (SWH) and Solar Pool Heating (SPH). The domestic SWH market has grown on an annual basis since 2004. In 2010, the market was strong in the !rst half of the year, faltered signi!cantly in Q3, but recovered in Q4 to ultimately increase rate of installations by approximately 5% over 2009. In total, 35,464 SWH systems were installed in the U.S. in 2010.

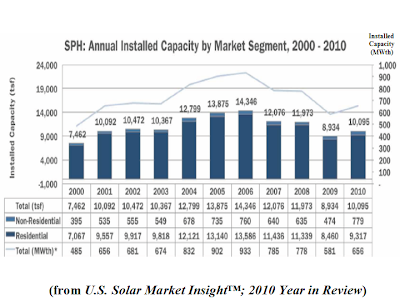

The SPH market hit a peak in 2006, and while it shrank signi!cantly from 2007-2009, in 2010 it made a slight recovery with indications that this upward trend will continue in the near term. 29,540 SPH systems were installed in the U.S. in 2010.
SOLAR WATER & SPACE HEATING (SWH)

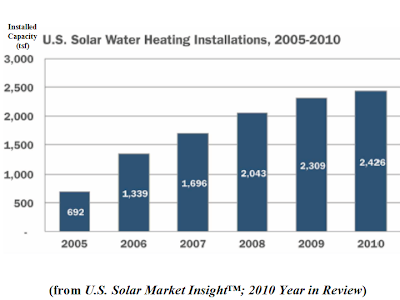

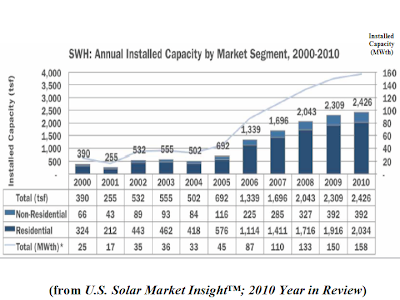

Since 2004, installed capacity for solar water and space heating has increased each year. In 2010, it is estimated that over 2,400 thousand square feet (tsf) of SWH capacity was installed in the U.S., which equates to 158 MWth.2 While the growth rate of installations slowed in 2010 compared to the previous year, the market has showed resilience even during the economic downturn. In addition to the economy, the slowed growth of installed capacity is also a result of low costs associated with conventional home heating methods, particularly natural gas. After hitting a peak of over $20/thousand cubic feet (Mcf), residential retail natural gas prices have hovered between $10-$15/thousand cubic feet (Mcf) in the past year (source: EIA, Residential Natural Gas Prices). Thus, the payback period for a SWH heating system is not as attractive as it was in previous years. Finally, with a multitude of PV incentives and low-interest !nancing available, many consumers simply looking to install a solar system have been steered away from SWH systems as a result of aggressive marketing campaigns enacted by large residential installers.
The top ten states for SWH installations in 2010 were, in order: California, Hawaii, Florida, Arizona, Puerto Rico, Massachusetts, Colorado, North Carolina, Wisconsin, and New York.
click to enlarge
Installed prices for SWH vary greatly from quarter to quarter, state to state, and even installation to installation. In states with warmer climates and better solar insolation, a smaller SWH system will produce the same amount of energy as a larger system in a more northerly state. Thus, less square footage of collectors is needed in places such as Arizona, southern California and Puerto Rico. On the whole, these systems are generally less expensive than systems installed in states such as Massachusetts or Wisconsin, but the price per square foot is actually higher due to less overall collector capacity. A price jump in Q4 can be attributed to the rate of installation slowing in northern states in accordance with the onset of the winter months, while installations continued in states where weather has little to no bearing on the market, thus driving up the average installed cost per sq ft.
click to enlarge
We expect the domestic SWH market to continue to grow, but the actual growth rate is largely dependent on the costs of conventional heating methods. Should the price of natural gas and heating oil rise, we expect to see an accelerated growth in the SWH market. However, if natural gas and oil prices remain the same or even drop below current levels, the growth rate will be much lower. Recently, third-party ownership has been gaining hold in the non-residential market. Similar to a PPA for a PV system, installers charge the end customer for the energy saved at a rate that is calculated from the prevailing utility rate minus a healthy discount. In this model, no matter which direction utility rates move, the end customer always saves money. This has yet to be scaled down for the residential market, but with over 20% of nonresidential systems installed in 2010 under third party ownership, we expect this percentage to grow in the coming years especially if the installed system price of natural gas rises.
click to enlarge
SOLAR POOL HEATING (SPH)
After peaking in 2006, the U.S. SPH market experienced a drastic decline in demand from 2007 to 2009. This can be largely attributed to weak housing markets in regions where pools and four-season swimming are prevalent: the South and the Southwest. In 2009 the decline in installed capacity from years prior was particularly bad, primarily as a result of the poor economy. 2010 breaks this trend, however. Recovery in both the economy and housing markets has led to an increase in system installations, and in particular, non-residential systems have seen massive growth. We estimate that over 10,000 tsf of capacity was installed in 2010; this represents a growth of 13% over 2009. Non-residential capacity grew the most, by over 60%, as some states added incentives for these types of systems.
The top ten states for solar pool heating installations in 2010 were, in order: Florida, California, Arizona, Oregon, Illinois, New York, Pennsylvania, Ohio, New Jersey and Nevada.
click to enlarge
Like SWH, installed costs for SPH systems vary from quarter-to-quarter and state-to-state. While the average cost per square foot increased by 7% between Q3 and Q4, over the course of the year the average installation cost per square foot decreased by 12%.
The drought in SPH installations in recent years is most directly associated with the overall health of the economy, especially in 2009. While SPH adds little cost relative to the cost of a pool, SPH demand is closely related to demand for new pools at homes, community centers, schools, hotels and sports clubs. As the economy and housing markets recover, especially the rate of new home sales in market-leading states like California, Florida and Arizona, we expect the SPH market to recover as well. Moreover, as consumers look for ways to curb energy consumption, we also expect the number of retro!ts to increase as well.
